API B Series Pumping Units
Brief Introduction

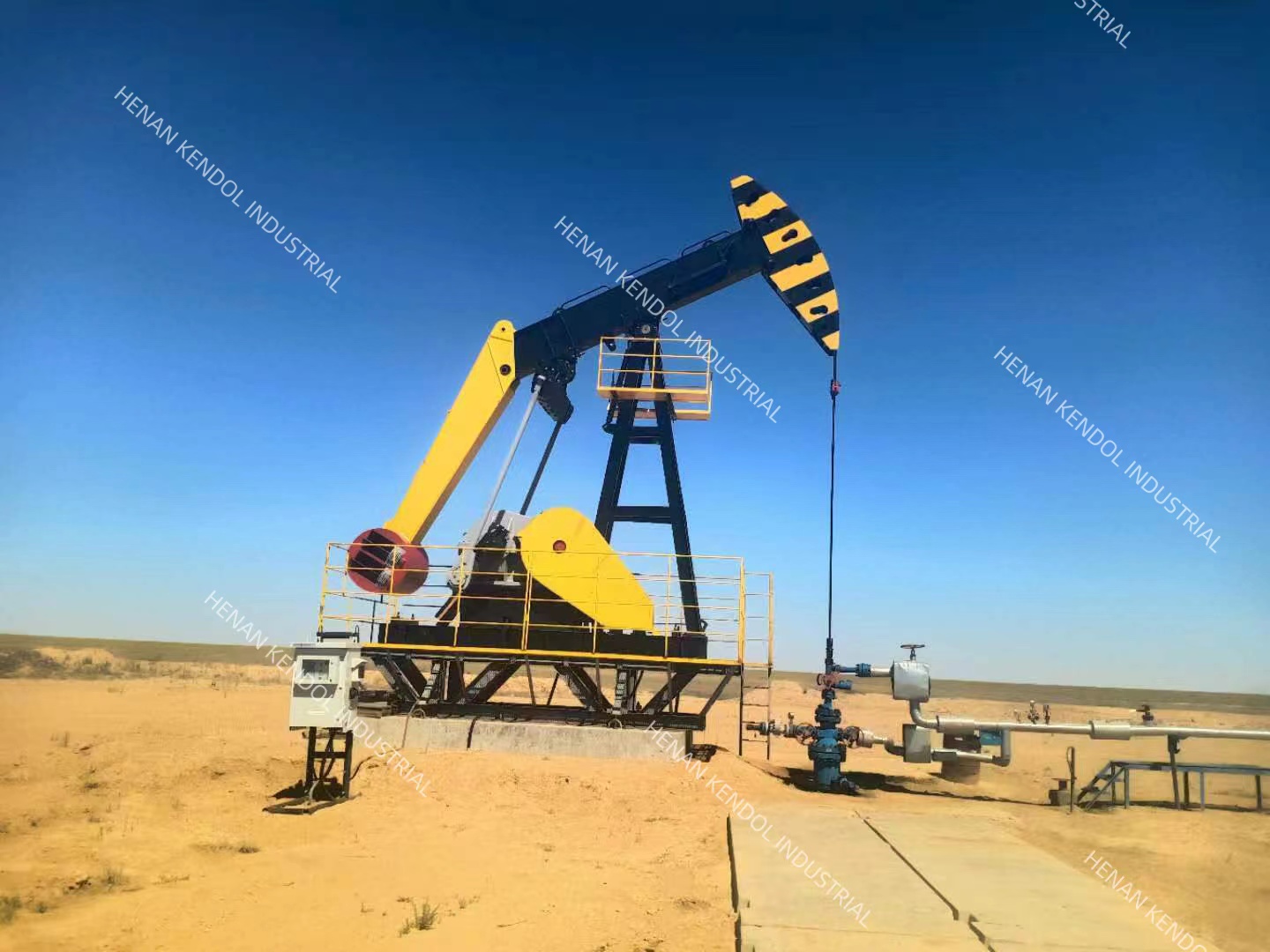

API B series Pumping Units is conventional walking beam pumping units, it’s a common type of power equipment on the ground used in rod oil extraction.
The products conform to API Spec.11E “Specification for Pumping Units” and other relative API standards, acquired the authorization to use Official API Monogram
Technical Performances
1、High reliability, simple operation, easy maintenance, long service life.
2、Gear reducer is involute herring-bone gearing, work smoothly and reliably.
3、the complete machine with light weight, it’s convenient for installation and transportation.
Main Technical Parameter
| No | Type | Polished Rod Capacity （lb） |
Stroke Length （in） |
Rated Torque |
| 1 | B-80D-119-64 | 11,900 | 64、54 | 80,000 |
| 2 | B-80D-76-64 | 7,600 | 64、54 | 80,000 |
| 3 | B-80D-133-54 | 13,300 | 54、41 | 80,000 |
| 4 | B-80-119-64 | 11,900 | 54、41 | 80,000 |
| 5 | B-80D-76-54 | 7,600 | 54、41 | 80,000 |
| 6 | B-80D-109-48 | 10,900 | 48、35 | 80,000 |
| 7 | B-57D-109-54 | 10,900 | 54、41 | 57,000 |
| 8 | B-57D-89-54 | 8,900 | 54、41 | 57,000 |
| 9 | B-57D-76-54 | 7,600 | 54、41 | 57,000 |
| 10 | B-57D-109-48 | 10,900 | 48、35 | 57,000 |
| 11 | B-57D-89-48 | 8,900 | 48、35 | 57,000 |
| 12 | B-40D-89-48 | 8,900 | 48、35 | 40,000 |
| 13 | B-40D-76-42 | 7,600 | 42、29 | 40,000 |
| 14 | B-25D-67-36 | 6,700 | 36、27 | 25,000 |
| 15 | B-16D-53-30 | 5,300 | 30、23 | 16,000 |
