Flexible Composite High-Pressure Conveying Pipe

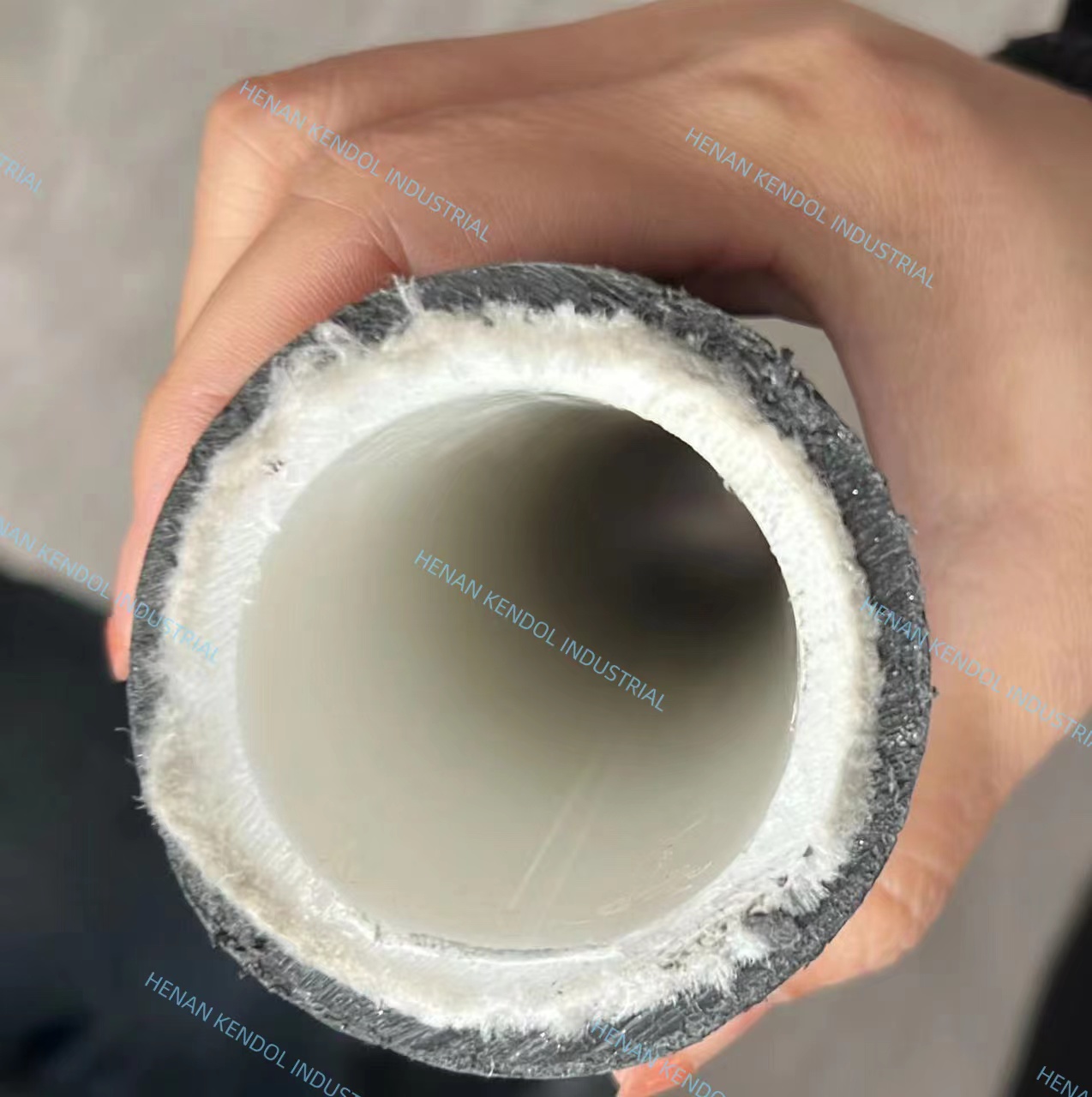

Composition structure:

Inner layer – thermoplastic resin with specific properties.

Middle – reinforcement layer, high-strength fiber wound at a specific angle or prefabricated tape containing high-strength fiber filaments, etc.

Outer layer – protective layer, specific performance modified polymer.

Features:

1.Corrosion resistance

2. Heat-resistant and thermal insulation
3. Good flexibility
4. Few connectors
5. Good hygienic performance
6. High pressure resistance
7. Strong conveying capacity
8. Convenient construction
9. High cost performance

10.Long service life

Implementation standards:

SY/T 6662.2-2020 “Non-metallic composite pipes for the oil and gas industry Part 2: Flexible composite high-pressure transmission pipes”

SY/T 6794-2018 “Coilable Reinforced Plastic Pipeline”

Nominal size DN 25mm-200mm

Nominal pressure PN 2.5MPa-32MPa

Application: Especially suitable for the transportation of high-sulfur gas, oil, water and other media, natural gas transportation, gathering and transportation pipelines, terminal oil transportation pipelines, oil field emergency treatment pipelines, and high-temperature and high-pressure brine transportation.
